POOL PUMP AQUAGEM INVERECO DE-27 INVERTER (1.35KW)

POOL PUMP AQUAGEM INVERECO DE-27 INVERTER (1.35KW)

Product Description

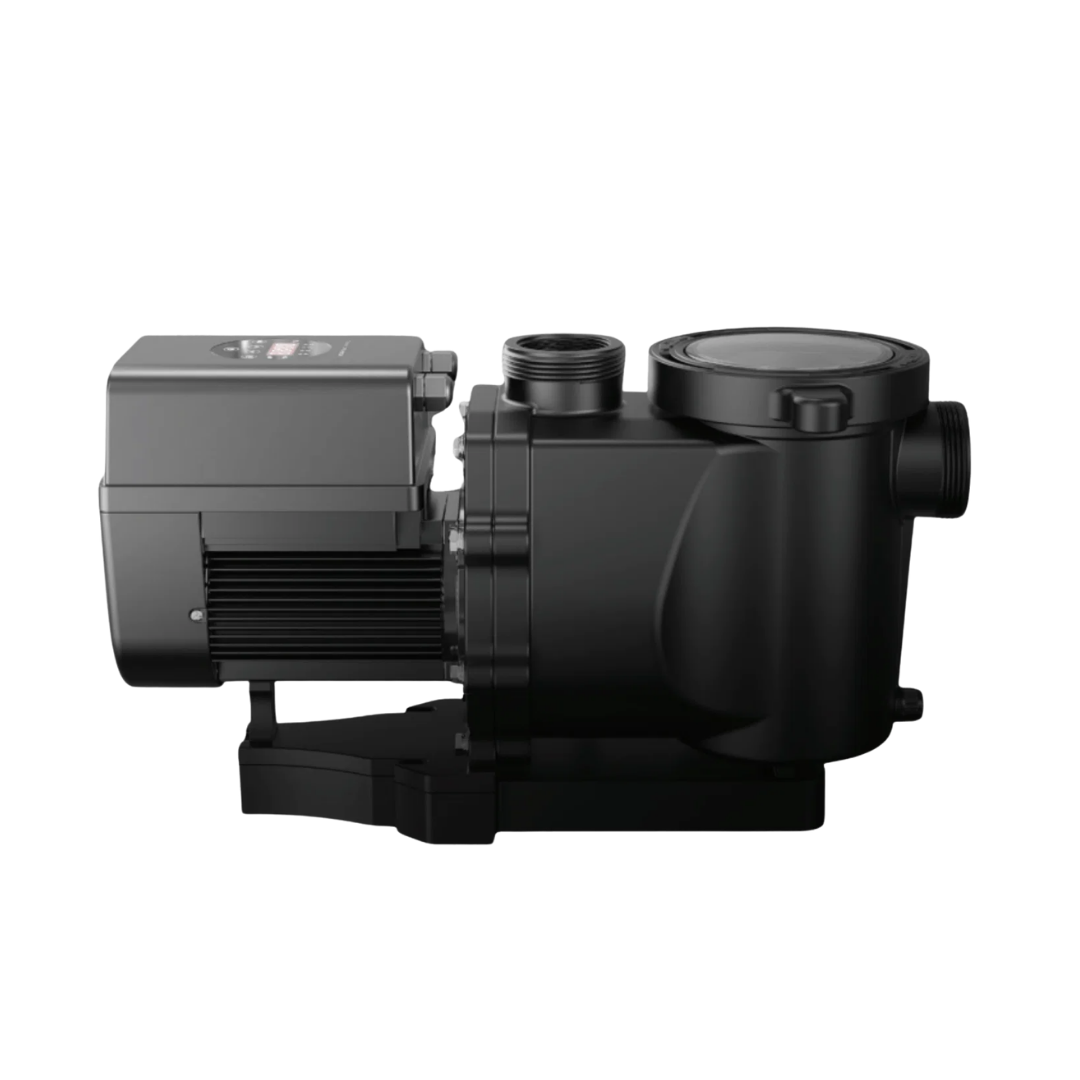

The Aquagem InverEco DE27 1.35kW inverter pool pump is designed for medium to large residential pools from 60 to 90m³.

Unlike a standard single speed pool pump that runs at one fixed speed, the InverEco DE27 uses InverSilence® full inverter technology to adjust motor speed according to the pool’s filtration needs. For daily filtration, the pump can run at lower capacity for quieter, more efficient circulation. When stronger flow is required for backwashing or high demand operation, the pump can run at higher capacity.

This makes the DE27 a practical option for South African pool owners who want to reduce monthly electricity usage without sacrificing pool circulation. It is especially suitable for larger pools where a smaller pump may struggle to maintain turnover and backwash performance.

The DE27 has a listed 1.35kW power rating, 28.5m³/h maximum flow rate, 20m maximum head, and advised pool volume of 60 to 90m³. At common operating head levels, it is listed at 27.0m³/h at 8m head and 24.0m³/h at 10m head.

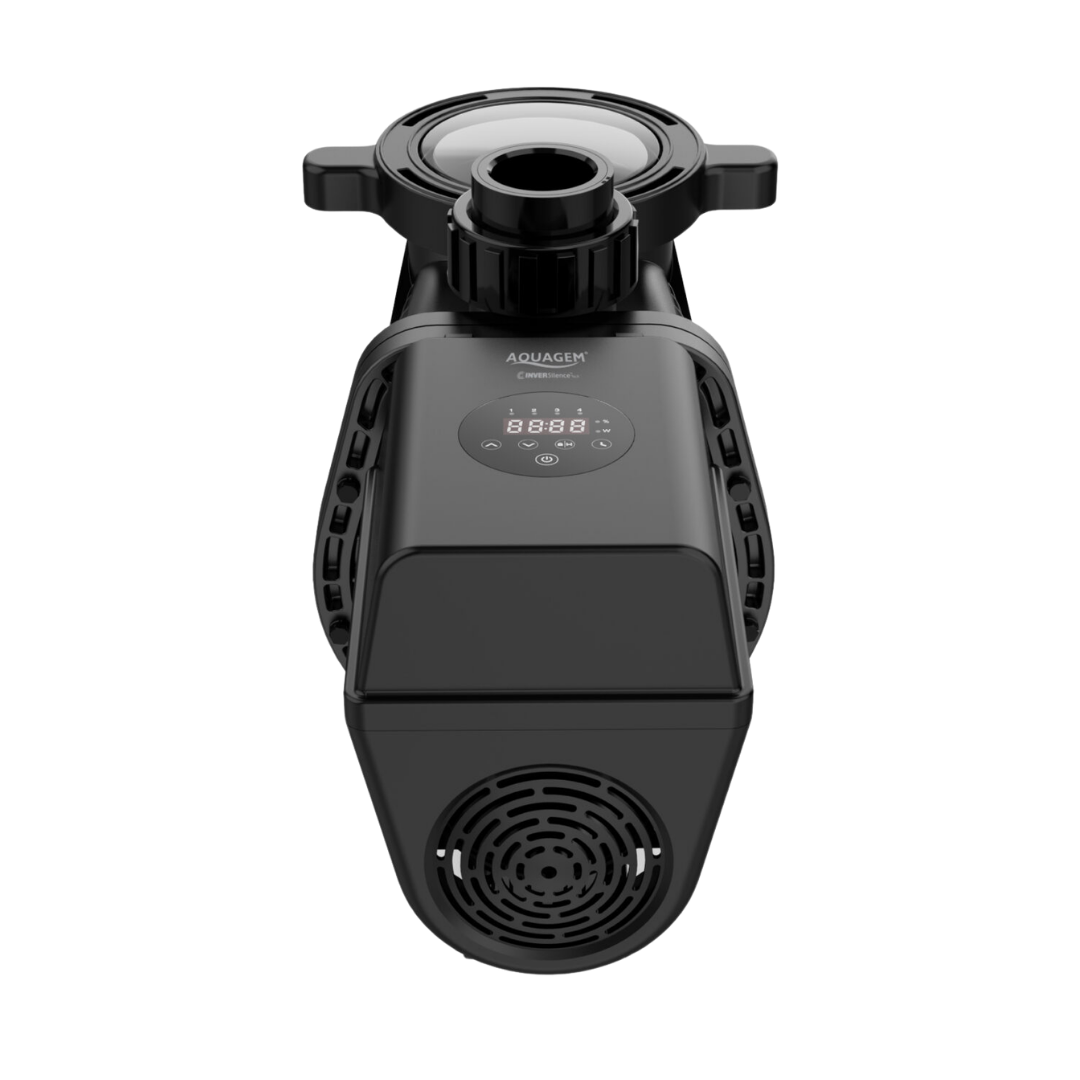

The pump also includes a smart and simple interface with 4 daily timers, real time power consumption reading, capacity adjustment from 30% to 100%, and one click backwash. External control is listed as optional through digital input, RS485 and relay output.

What Is the Aquagem InverEco DE27?

The Aquagem InverEco DE27 is a 1.35kW variable speed inverter pool pump.

It is designed to move water through the swimming pool filtration system while using inverter technology to control motor speed more efficiently than a fixed speed pump.

It is suitable for:

• Larger residential swimming pools
• Pools from 60 to 90m³
• Sand filter systems that require strong flow
• Pools where lower noise is important
• Homes where electricity saving is a priority
• Pool owners wanting programmable daily filtration
• Pool systems that may benefit from external control options

It does not replace the sand filter, chlorinator, pool cleaner, chemical treatment, water testing or normal pool maintenance.

How Does an Inverter Pool Pump Help Save Electricity?

A traditional single speed pump normally runs at full speed whenever it is switched on.

An inverter pool pump can run at lower speed when the pool only needs normal filtration. Lower speed operation usually uses less electricity and creates less noise. When more flow is needed, such as during backwashing, the pump can run at higher capacity.

Actual savings depend on the pool size, plumbing, filter condition, daily runtime, selected speed settings, local electricity cost and installation quality.

Key Features and Benefits

Suitable for Pools from 60 to 90m³

The DE27 is sized for larger residential pools from 60,000 to 90,000 litres.

1.35kW Inverter Motor

The 1.35kW motor gives the DE27 the capacity needed for medium to large filtration systems.

Maximum Flow Rate of 28.5m³/h

The listed maximum flow rate is 28.5m³/h, supporting strong circulation when the system requires it.

Maximum Head of 20m

The listed maximum head is 20m, helping the pump handle higher resistance systems when correctly installed.

Flow at 8m and 10m Head

The DE27 is listed at 27.0m³/h at 8m head and 24.0m³/h at 10m head.

InverSilence® Full Inverter Technology

The motor speed can adjust according to filtration demand, supporting quieter and more efficient operation.

Noise Down to 36 dBA

The InverEco range is listed with noise down to 36 dBA, depending on running speed and site conditions.

IE4 Motor Efficiency Class

The motor is listed as IE4 efficiency class, supporting efficient long term operation.

4 Daily Timers

The built-in interface includes 4 timers for daily operation, helping users set suitable filtration periods.

Running Capacity from 30% to 100%

The pump can operate from 30% to 100% capacity, allowing lower speed filtration and higher speed backwashing.

One Click Backwash

One click backwash allows the pump to run at high capacity for filter backwashing when required.

Real Time Power Reading

The controller displays power consumption, helping the pool owner understand how the pump is operating.

Soft Start

Soft start helps the pump start gradually instead of drawing a heavy sudden startup load.

Optional External Control

External control is listed as optional through digital input, RS485 and relay output.

FAQs

What is the Aquagem InverEco DE27?

The Aquagem InverEco DE27 is a 1.35kW variable speed inverter pool pump for residential swimming pools from 60 to 90m³.

What pool size is the DE27 suitable for?

The DE27 is suitable for pools from 60 to 90m³, or roughly 60,000 to 90,000 litres.

Is the DE27 suitable for a 90,000 litre pool?

Yes. The advised pool volume for the DE27 is up to 90m³, which is approximately 90,000 litres.

What is the power rating?

The DE27 is listed as a 1.35kW pump.

What voltage does it use?

The listed voltage is 220 to 240V, 50 to 60Hz.

What is the current rating?

The listed current is 6.2A.

What is the maximum flow rate?

The listed maximum flow rate is 28.5m³/h.

What is the maximum head?

The listed maximum head is 20m.

What is the flow at 8m head?

The listed circulation flow at 8m head is 27.0m³/h.

What is the flow at 10m head?

The listed circulation flow at 10m head is 24.0m³/h.

Is the Aquagem InverEco DE27 energy efficient?

Yes. It uses inverter technology and an IE4 motor. Actual electricity saving depends on the pool, runtime and speed settings.

Can it save up to 90% electricity?

Aquagem’s InverEco material refers to up to 10 times saving and 90% saving under comparison conditions. Real world savings depend on installation, speed settings, pool size, plumbing and daily runtime.

Is the pump quiet?

Yes. The InverEco range is listed with noise down to 36 dBA. Noise level depends on speed, pump room ventilation, plumbing and installation surface.

Does it have programmable timers?

Yes. The interface includes 4 timers for daily operation.

Can I control the speed?

Yes. The pump can run from 30% to 100% capacity.

Does it have one click backwash?

Yes. One click backwash is listed as a feature.

Does it have Wi-Fi?

The supplied information states optional Wi-Fi control. Confirm current Wi-Fi module availability before publishing as included.

Is Wi-Fi included in the box?

Wi-Fi is listed as optional, so do not assume it is included unless confirmed by the supplier.

Can it be used with a sand filter?

Yes, when the pump is correctly matched to the sand filter size and plumbing system.

Can it be used with a 4 bag or larger sand filter?

The DE27 may be suitable for larger sand filter systems, but final matching depends on pool volume, filter size, pipework and hydraulic resistance.

Does it replace my pool cleaner?

No. This is a filtration pump, not a suction cleaner or robotic cleaner.

Does it replace my chlorinator?

No. It circulates water. Sanitising still requires chlorine, salt chlorination, mineral treatment or another approved pool sanitation method.

Does it need professional installation?

Yes. Professional pool and electrical installation is recommended.

Can it be installed outside?

The pump is listed with IP55 protection, but it should still be protected from flooding, direct rain exposure and poor ventilation.

Can the pump run dry?

No. Do not run the pump dry or with closed valves. Running dry can damage the pump and may affect warranty.

How should the pump be maintained?

Clean the pump basket, check the lid O-ring, keep the motor area ventilated, backwash the filter when required and avoid flooding the motor.

Key Features and Benefits

• Aquagem InverEco DE27
• 1.35kW inverter pool pump
• Suitable for pools from 60 to 90m³
• Suitable for pools up to 90,000 litres
• 220 to 240V, 50 to 60Hz
• 6.2A current rating
• Maximum flow rate of 28.5m³/h
• Maximum head of 20m
• 27.0m³/h at 8m head
• 24.0m³/h at 10m head
• InverSilence® full inverter technology
• Noise down to 36 dBA
• IE4 motor efficiency class
• 4 timers for daily operation
• Power consumption reading
• Running capacity from 30% to 100%
• One click backwash
• Soft start
• Auto and manual operating modes
• Optional external control
• Optional Wi-Fi control
• External control options listed as digital input, RS485 and relay output
• IP55 protection class
• Class F insulation
• Suitable for larger South African residential pools

Real World Applications / Ideal For

• Medium to large residential swimming pools
• Pools from 60,000 to 90,000 litres
• Larger suburban pools in South Africa
• Pool owners wanting lower running costs
• Pool owners replacing an older single speed pump
• Pool systems where quiet operation matters
• Pool filtration systems requiring stronger circulation
• Sand filter systems that need reliable backwashing flow
• Homes affected by high electricity costs
• Pool owners wanting timer based daily filtration
• Pool professionals matching inverter pumps to larger filtration systems

Technical Specifications

Installation / Usage Notes

• Professional installation by a qualified pool technician and electrician is recommended.
• Confirm that the DE27 is correctly matched to the pool volume, filter size and pipework.
• Use suitable unions and plumbing fittings for service access.
• Do not install the pump where it can flood.
• Keep the suction line as short and direct as possible.
• Avoid undersized pipework, as poor hydraulics can reduce performance.
• Ensure all suction fittings are airtight.
• Make sure the pump basket and weir basket are cleaned regularly.
• Maintain correct ventilation around the motor.
• Do not run the pump dry.
• Do not operate the pump for extended periods against closed valves.
• Backwash the filter when the pressure rises above the normal clean pressure range.
• Use the higher speed or one click backwash function only when required.
• Use lower speed settings for normal daily filtration where suitable.
• Confirm optional Wi-Fi and external control accessories before selling them as included.
• Keep the controller protected from flooding and harsh equipment room conditions.

Conclusion

The Aquagem InverEco DE27 1.35kW inverter pool pump is a strong choice for larger residential pools from 60 to 90m³.

With InverSilence® technology, variable speed operation, 4 timers, one click backwash, real time power reading, quiet operation and a listed maximum flow rate of 28.5m³/h, it gives pool owners a more efficient way to run daily filtration compared with a standard single speed pump.
